| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1-6609016-6 |
| Capacitance, Cx | 0.0059 μF |
| Capacitance, Cy | 0.1015 μF |
| Current Rating | 10 A |
| Current, Leakage | 0.38 mA |
| Cut Out, Panel | 30.48×20.8mm (Front Mount), 30.48×22.9mm (Back Mount) " |
| Dimensions | 20.6mm H x 66.5mm W x 50.3mm L |
| Filter Type | AC Line |
| Frequency, Operating | 50/60 Hz |
| Gender | Male |
| Hipot Rating, Line to Ground | 1500 VAC |
| Hipot Rating, Line to Line | 1450 VDC |
| Inductance | 0.36 mH |
| Mounting Type | Panel Mount/Screw |
| Number of Poles | 3 |
| Operating Temperature | -10 to 40 °C |
| Phase | 1 |
| Primary Type | AC Inlet |

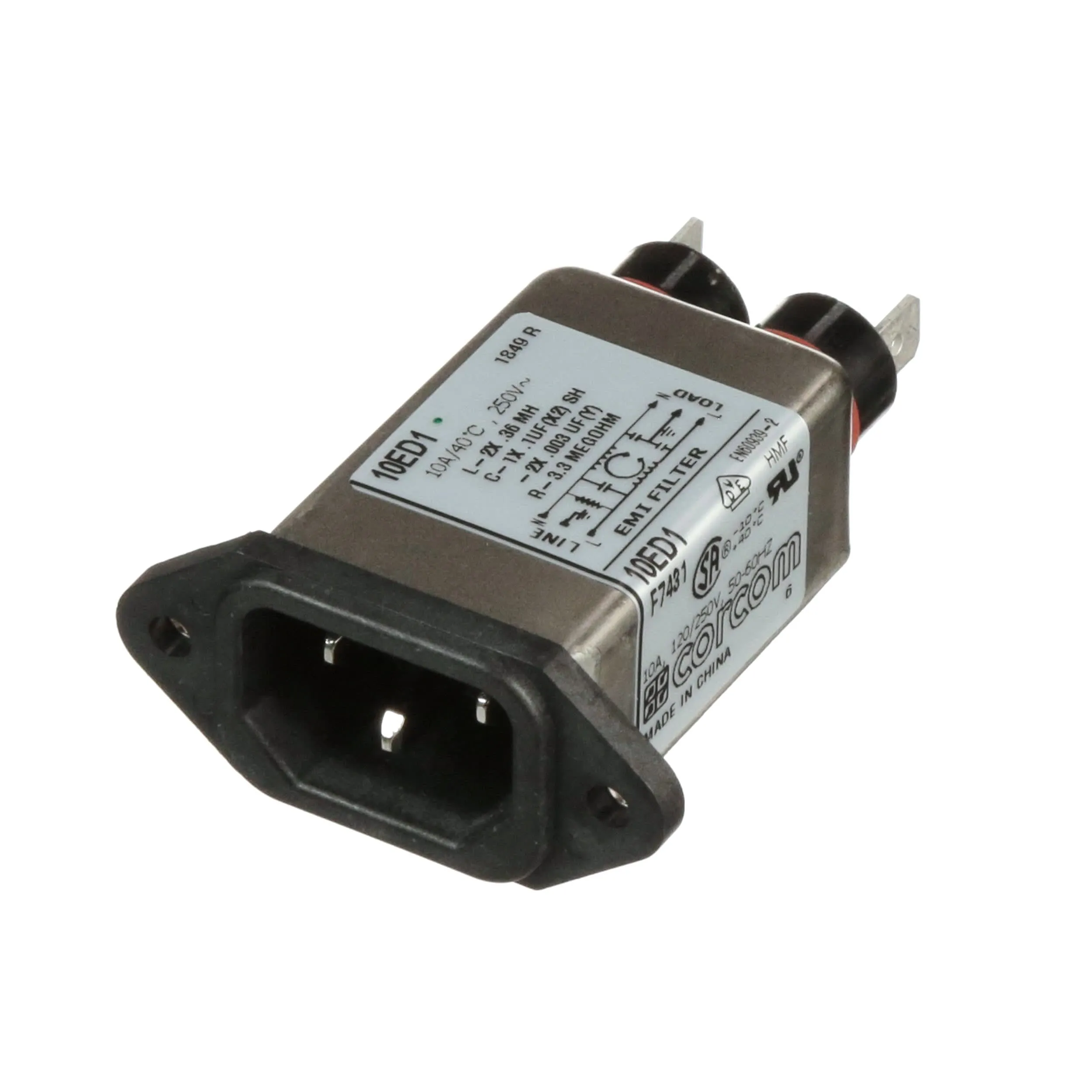

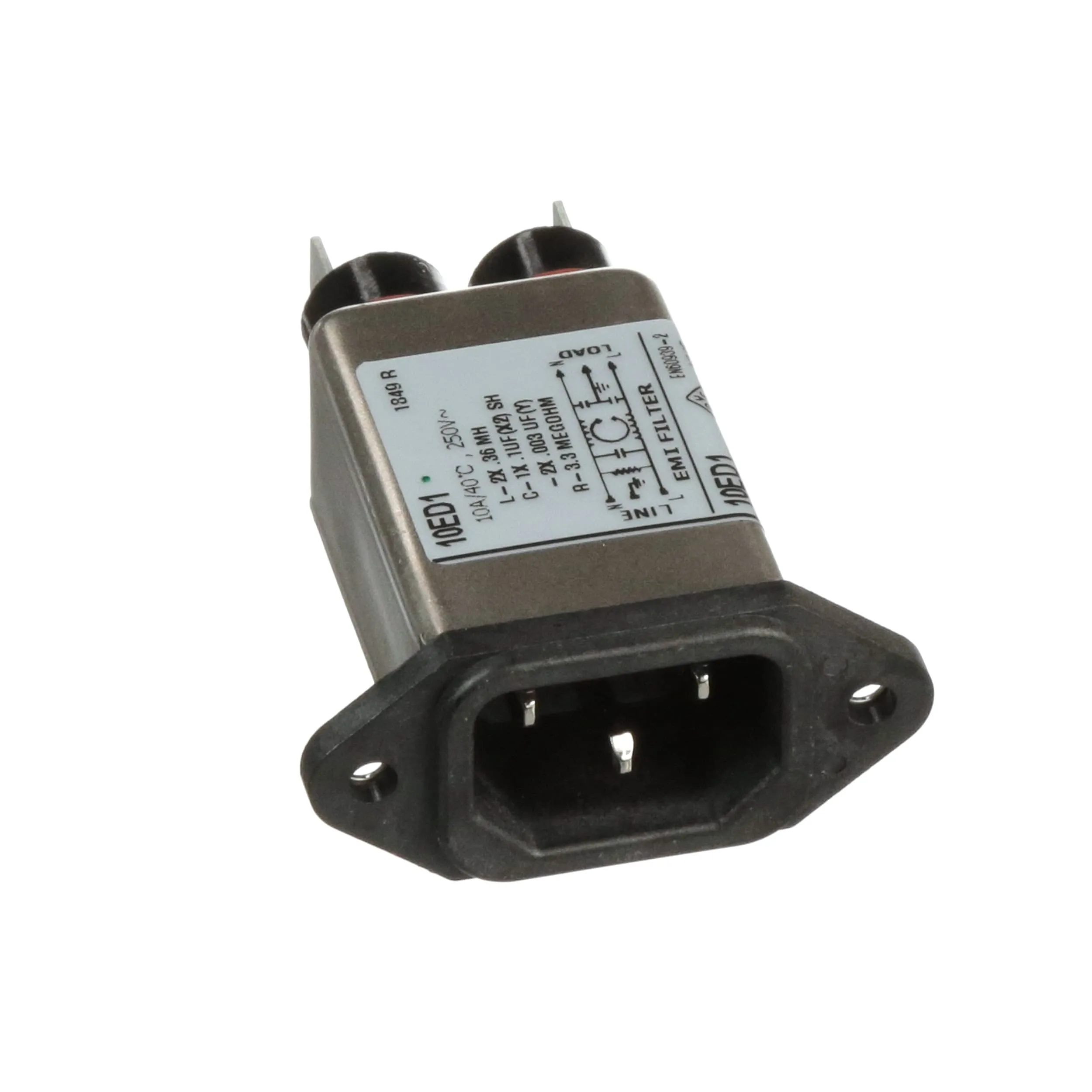

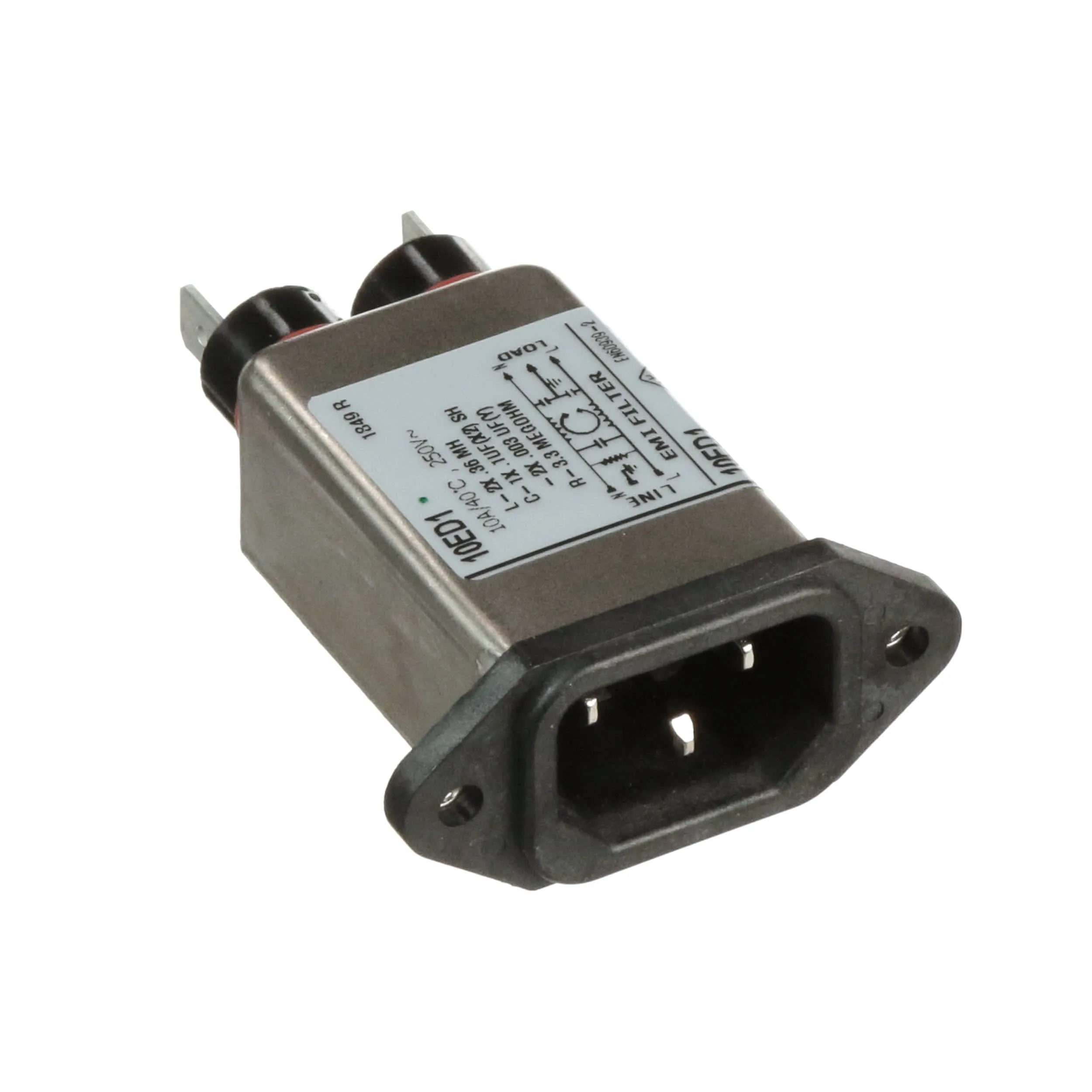

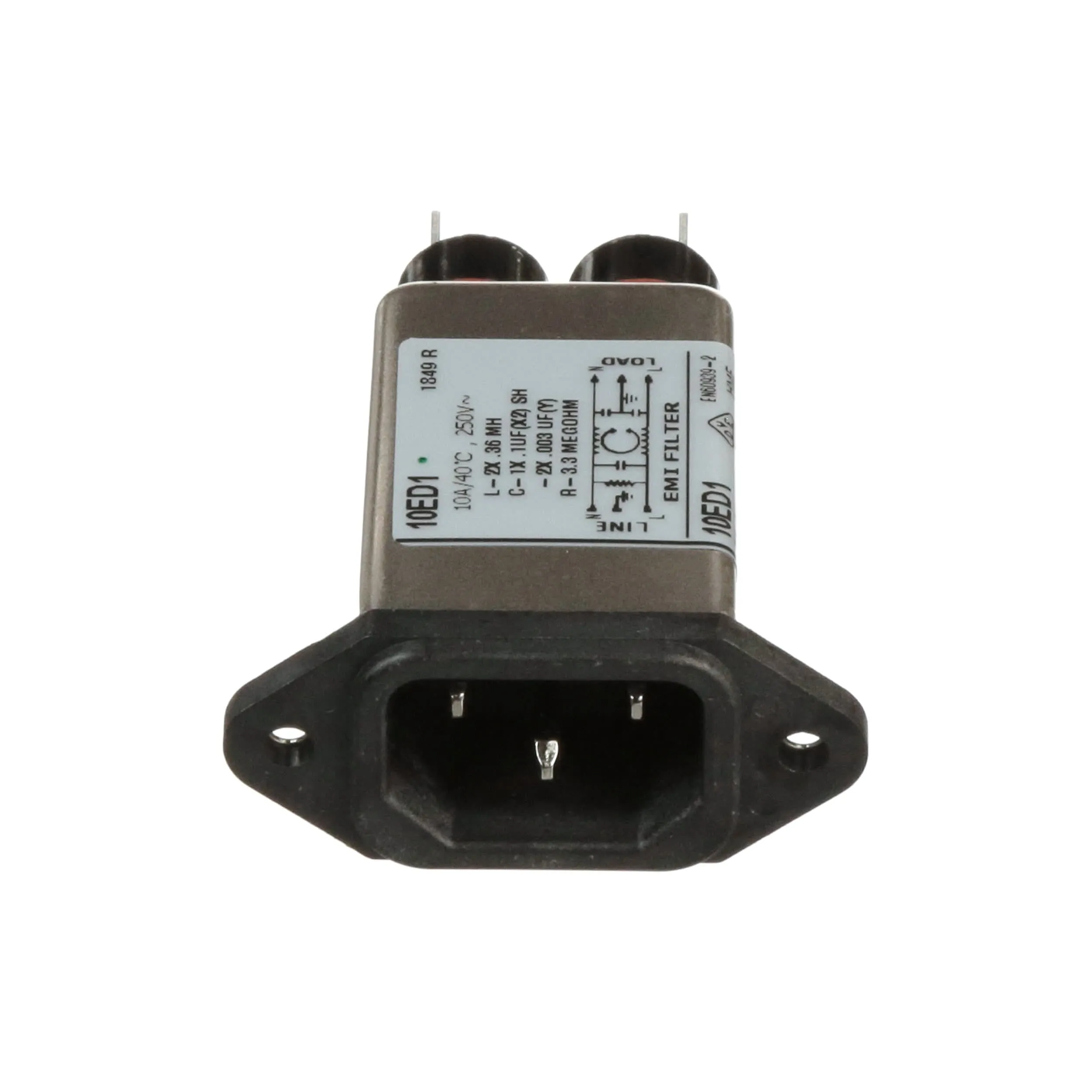

| Product Header | High Performance Compact RFI Power Line Filter |
| Resistance | 3.3 Megohms (Discharge), 6000 Megohms (No Discharge) |
| Series | |
| Termination | QC |
| Type | Filter |
| Version | Standard |
| Voltage Rating | 250 VAC |
| Voltage, Operating | 250 VAC |
Overview
The ED Series filters are more effective than general-purpose filters in applications where line-to-line and low-frequency line-to-ground noise must be controlled; for example, to bring equipment into compliance with FCC conducted emissions standards. The ED Series offers significantly higher performance than comparably sized filters, especially at high frequencies, yet is in the EF series package which incorporates the IEC power line connector. The ED1 models have 0.250" terminals on the load side; ED4 and ED8 have wire leads. Maximum Leakage Current (Line-to-Ground): 0.22 mA @ 120 VAC, 60 Hz; 0.38 mA @ 250 VAC, 50 Hz. Hipot Rating (1 minute): Line-to-Ground — 1500 VAC; Line-to-Line — 1450 VDC. Operating Frequency: 50/60 Hz. Maximum Rated Voltage: 250 VAC.
