Product Details
＋
Experience the ultimate in cooling comfort with our premium selection of wholesale air conditioners. All units come with a full Australian Manufacturer's Warranty for your peace of mind. Enjoy brand new, top-of-the-line air conditioners sourced directly from Australian stock - never a factory second in sight!

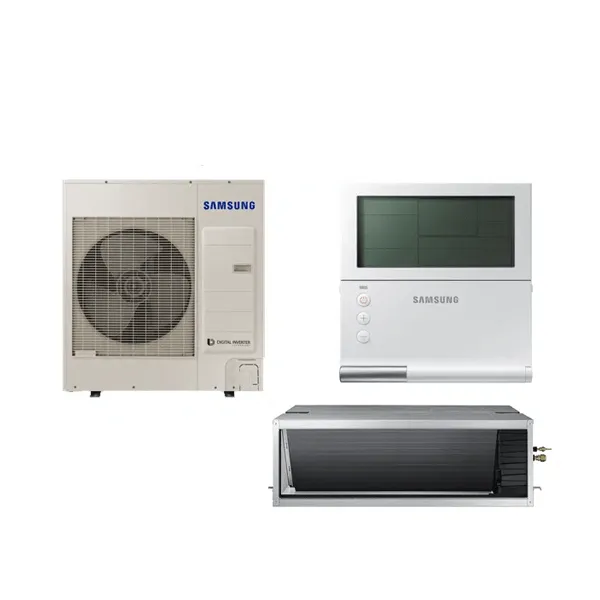

A Samsung inverter reverse cycle Ducted Air Conditioner is designed to enable each room in your home to be cooled or heated by one system. Ducted Systems are also relatively unobtrusive as the conditioned air is distributed through ducts hidden in your roof space to outlets in the ceiling of each room.
Powerful Airflow for fast cooling
Samsung Duct S2 provides powerful airflow for fast cooling for your home. With 2 fans in the 5.2kW model and 3 fans in the 7.1kW-14kW models, the Duct S2 will provide the airflow for comfort when you needed most.
Low running cost
The Duct S2's highly efficient air conditioning system helps to avoid a hefty bill meaning you can run your air conditioning all day long.
Lightweight and easy to install
Duct S2 is designed to help make installation easy, with its lightweight and compact indoor unit. Larger capacity models (16kW and above) can be easily separated for handling and maneuvering into tight installation spaces.
Samsung has added the new eco-friendly R32 refrigerant to its air conditioning range. R32 Refrigerant has a low Global Warming Potential (GWP)* and a zero Ozone Depletion Potential (ODP) effect which helps to protect the ozone layer!
Quiet, High Performance
The Duct S2 system is designed with your needs in mind. Adopting Twin Brushless Direct Current (BLDC) rotary compressor with premium moving parts ensures a gentler, more reliable performance. It reduces vibration by 75% and creates less noise than conventional compressors.
Rest assured with Samsung Quality
The Samsung Ducted system is supported by a 5 year parts and labour warranty for residential applications.
7.1 kW Heating
R32 | Includes MWR-WE13N
Specification
| Ê Model Name System | Indoor Unit | AC071TNHDKG/SA | |
| Outdoor Unit | AC071TXAPKG/SA | ||
| Ê Capacity | Refrigerant | R32 | |
| Cooling (Min/Std/Max) | kW | 2.00 / 7.10 / 8.00 | |
| Heating (Min/Std/Max) | kW | 1.70 / 8.00 / 9.00 | |
| Ê Ê Efficiency | Energy Grade (Cooling) | EER | 3.21 |
| Energy Grade (Heating) | COP | 4.00 | |
| Energy Grade (Cooling) | AEER | 3.21 | |
| Energy Grade (Heating) | ACOP | 3.99 | |
| Ê Electrical | MCA | A | 18.8 |
| MFA | A | 20.7 | |
| Ê Ê Ê Ê Ê Indoor Unit | Power Supply | _, #, V, Hz | 1-phase, 220-240V, 50Hz |
| Air Flow Rate (H, M, L) | l/s | 400 / 333 / 283 | |
| ESP (L,M,H) | Pa | 0 / 39 / 147 | |
| Sound Pressure @ 1.5m (H/L) | dB(A) | 36 / 28 | |
| Supply Air Opening (WxH) | mm | 1168 x 220 | |
| Return Air Opening (WxH) | mm | 1168 x 220 | |
| Net Weight | kg | 34 | |
| Unit Dimensions (WxHxD) | mm | 1200 x 250 x 700 | |
| Drain connection size | mm | OD 32 / ID 25 | |
| Ê Ê Ê Ê Ê Outdoor Unit | Power Supply | _, #, V, Hz | 1-phase, 220-240V, 50Hz |
| Type | Twin BLDC Rotary | ||
| Sound Pressure @ 1m (Cool/Heat) | dB(A) | 50 / 52 | |
| Sound Power (Cooling High) | dB(A) | 66 | |
| Net Weight | kg | 51 | |
| Shipping weight | kg | 55 | |
| Net Dimensions (WxHxD) | mm | 880 x 798 x 310 | |
| Shipping Dimensions (WxHxD) | mm | 1,023 x 896 x 413 | |
| Ê Ê Ê Installation | Liquid Pipe | 6.35, 1/4î | |
| Gas Pipe | 15.8, 5/8î | ||
| Max. Allowable Piping Length | m | 50 | |
| Max. Allowable Piping Height (outdoor above indoor) | m | 30 | |
| Pre-charged Length | m | 20 | |
| Ê Operating Range | Cooling | _C | -15 to 50 |
| Heating | _C | -20 to 24 | |
Features
Comfortable all year roundA Samsung inverter reverse cycle Ducted Air Conditioner is designed to enable each room in your home to be cooled or heated by one system. Ducted Systems are also relatively unobtrusive as the conditioned air is distributed through ducts hidden in your roof space to outlets in the ceiling of each room.
Powerful Airflow for fast cooling
Samsung Duct S2 provides powerful airflow for fast cooling for your home. With 2 fans in the 5.2kW model and 3 fans in the 7.1kW-14kW models, the Duct S2 will provide the airflow for comfort when you needed most.
Low running cost
The Duct S2's highly efficient air conditioning system helps to avoid a hefty bill meaning you can run your air conditioning all day long.
Lightweight and easy to install
Duct S2 is designed to help make installation easy, with its lightweight and compact indoor unit. Larger capacity models (16kW and above) can be easily separated for handling and maneuvering into tight installation spaces.
Samsung has added the new eco-friendly R32 refrigerant to its air conditioning range. R32 Refrigerant has a low Global Warming Potential (GWP)* and a zero Ozone Depletion Potential (ODP) effect which helps to protect the ozone layer!
Quiet, High Performance
The Duct S2 system is designed with your needs in mind. Adopting Twin Brushless Direct Current (BLDC) rotary compressor with premium moving parts ensures a gentler, more reliable performance. It reduces vibration by 75% and creates less noise than conventional compressors.
Rest assured with Samsung Quality
The Samsung Ducted system is supported by a 5 year parts and labour warranty for residential applications.
Description
7.1 kW Cooling7.1 kW Heating
R32 | Includes MWR-WE13N
