Description
***WILL NO LONGER BE AVAILABLE IN 2025***

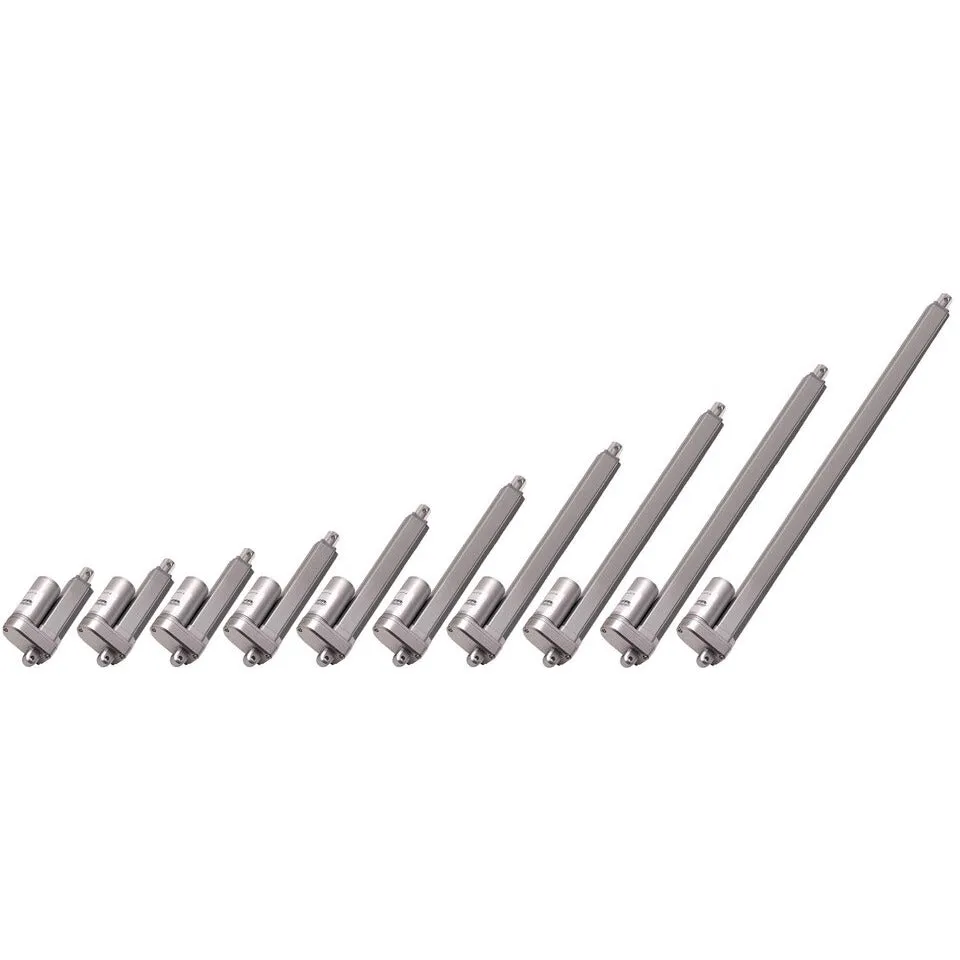

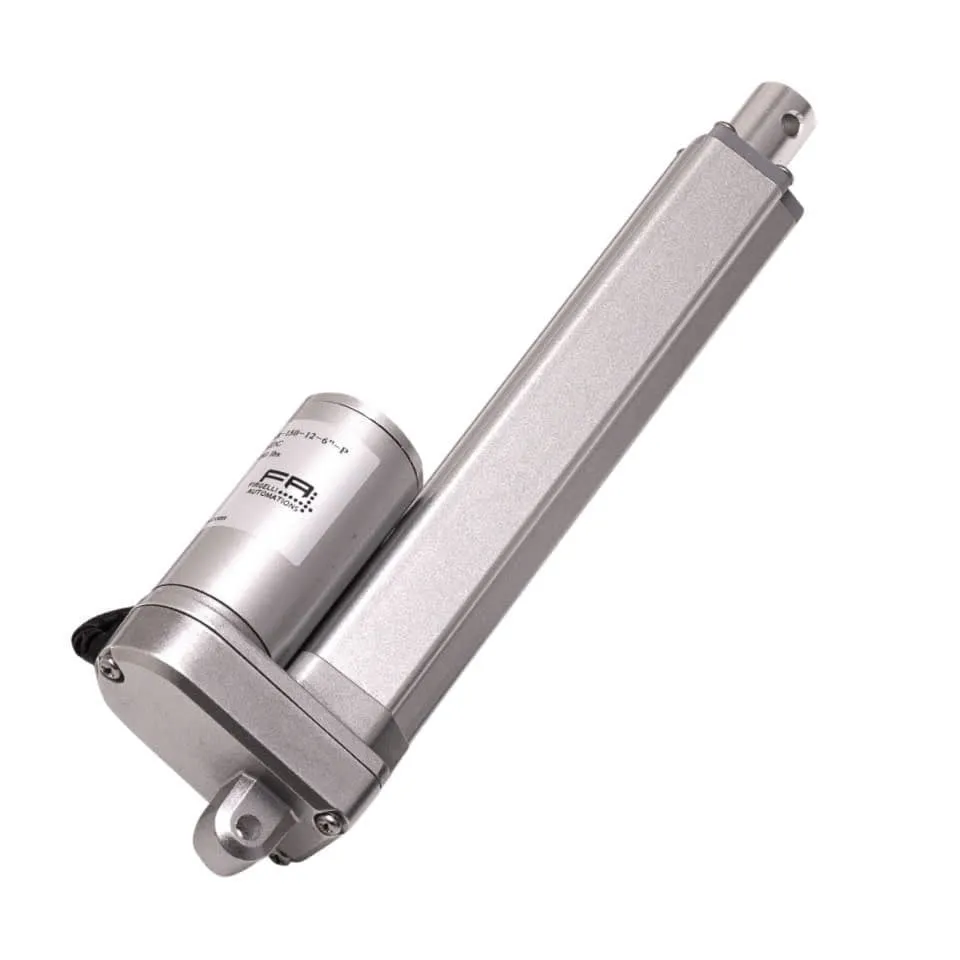

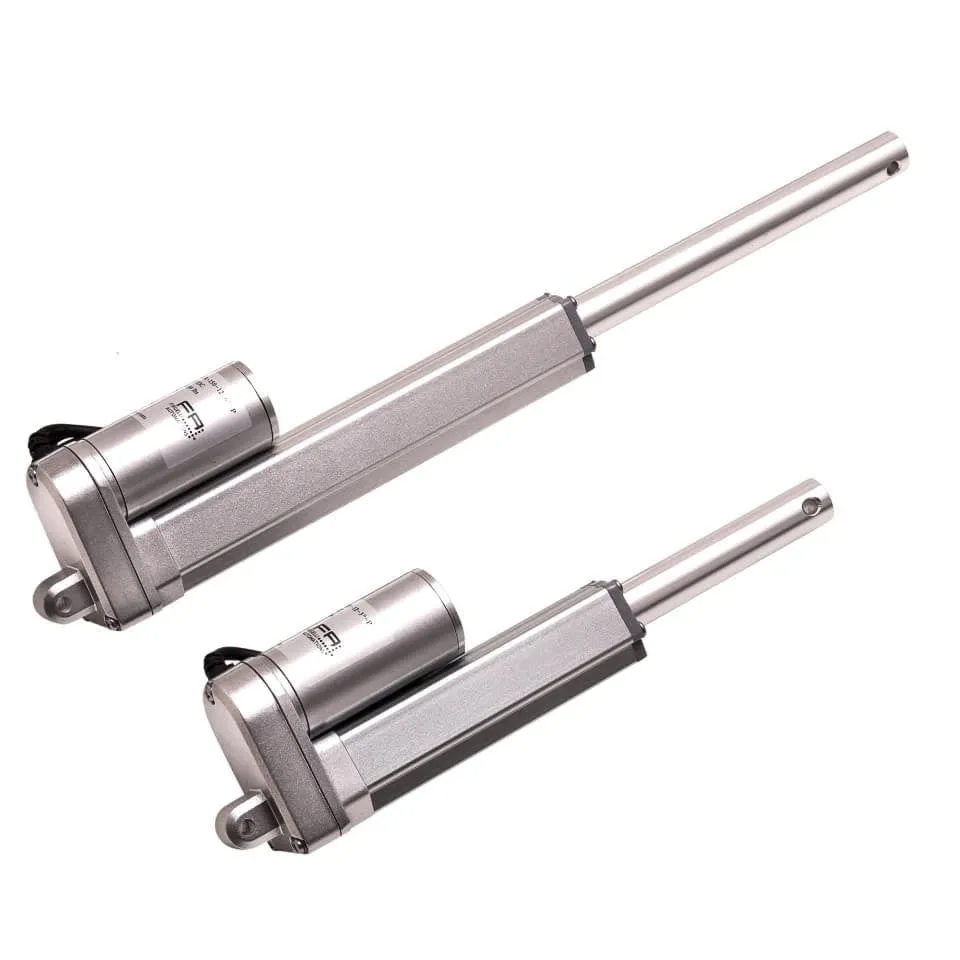

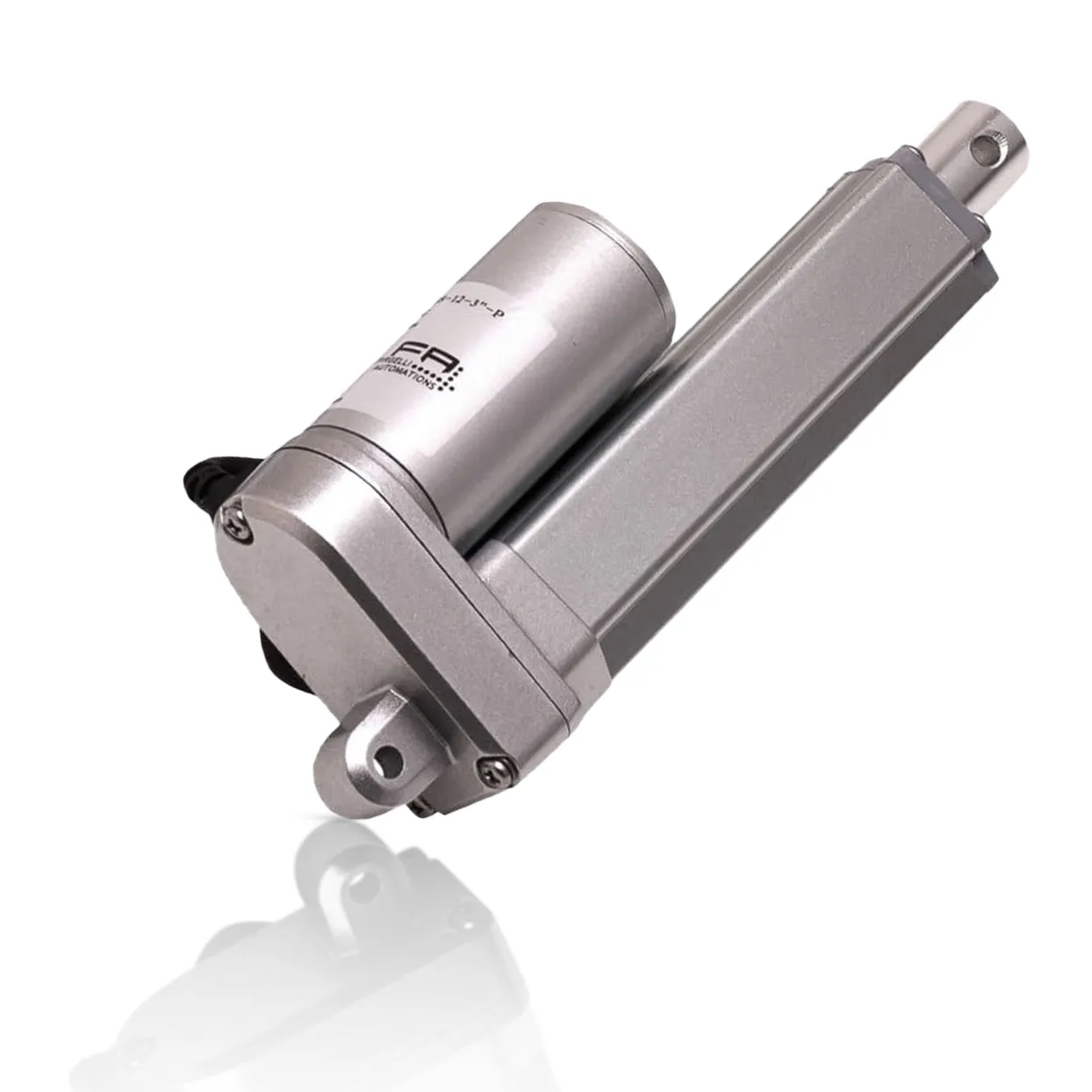

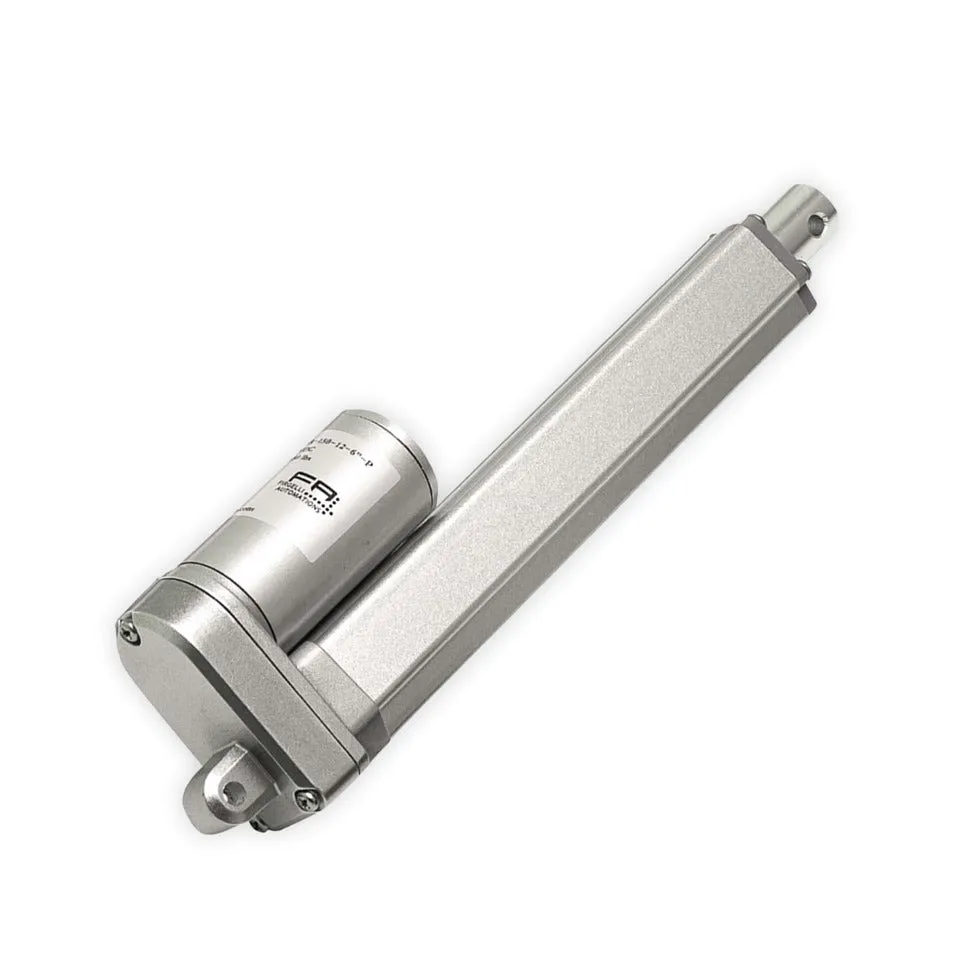

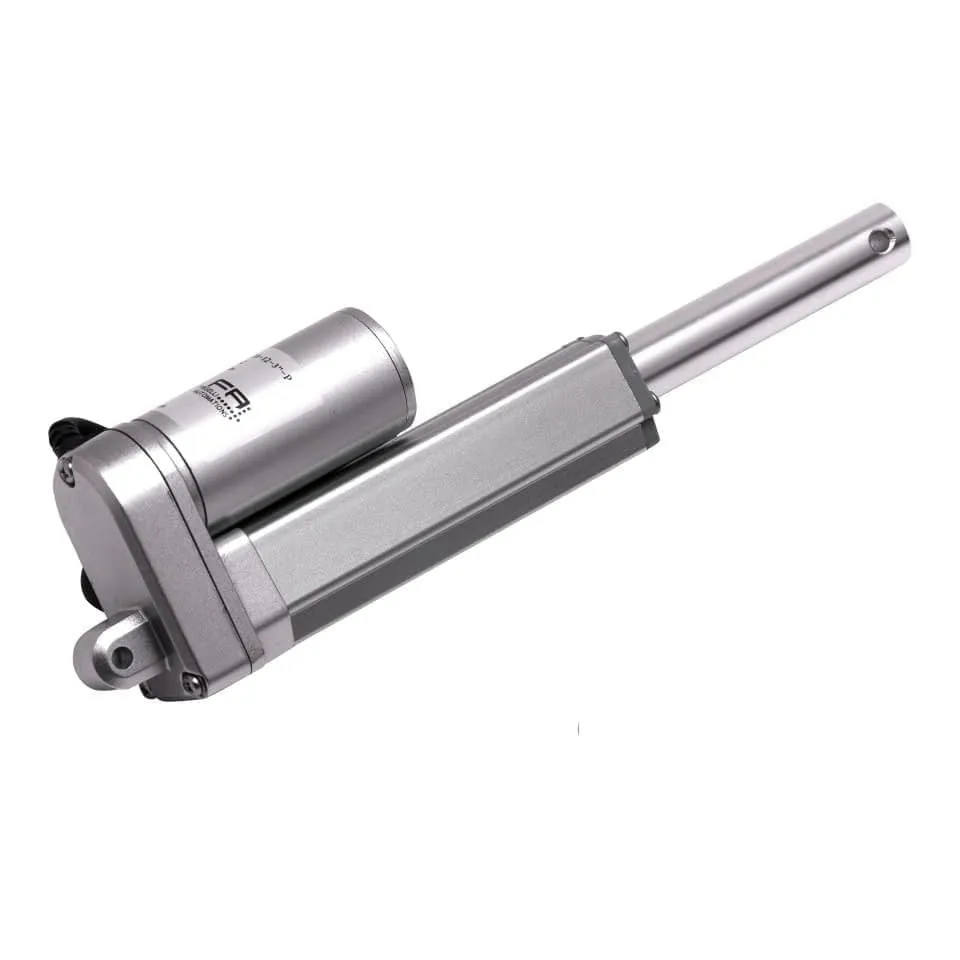

Motorize your idea’s with these compact and versatile P-Series Actuators. Available in strokes from 1 to 30” and forces ranging from 35 – 200 lbs. Manufactured from aerospace-grade aluminum and built-in limit switches for automatic end of stroke stopping, these actuators provide zero maintenance for all your automation projects, making you the Automation Expert.
Based on our popular Standard Classic Linear Actuator models, the P-Series units retain the same compact and versatile body shape while incorporating several upgraded design features that provide:
- 3 force options: 25lbs, 150lbs, 200lbs force
- Strokes 1" to 30"
- Enhanced corrosion resistance
- Longer unit life
- Increased durability
- Low noise design - operates at just 20 DB over ambient.

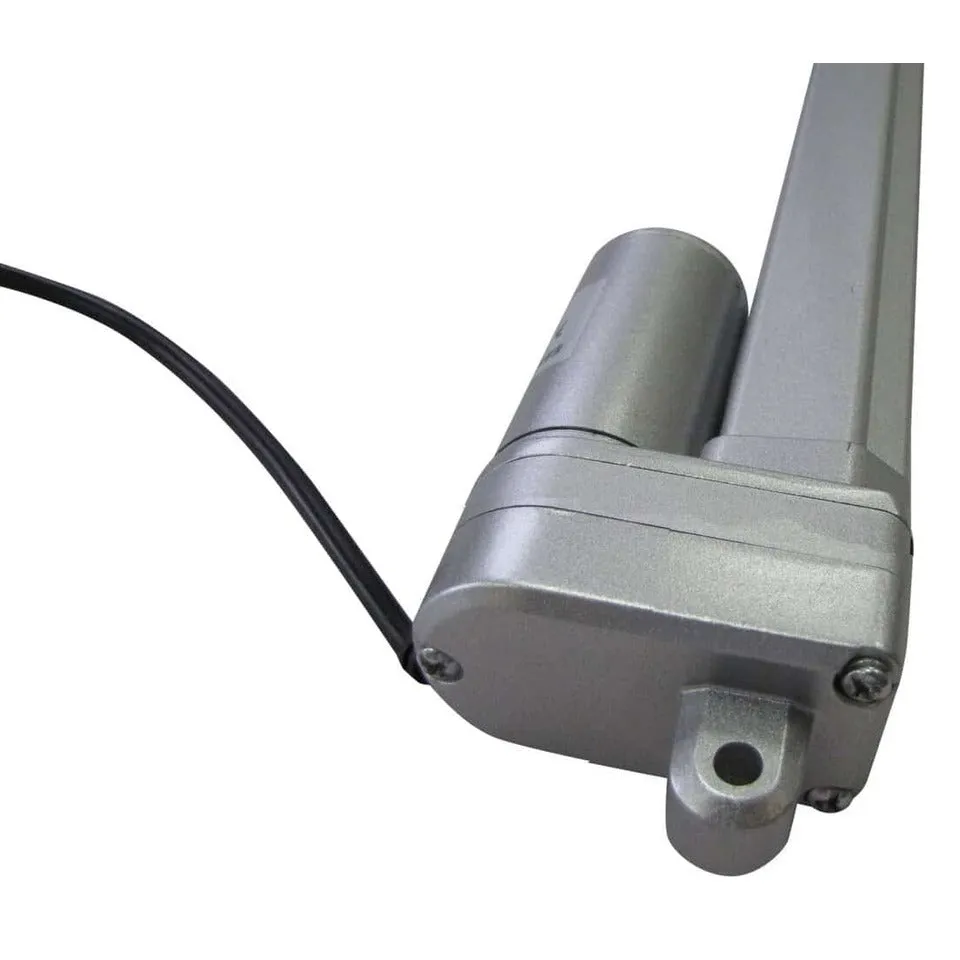

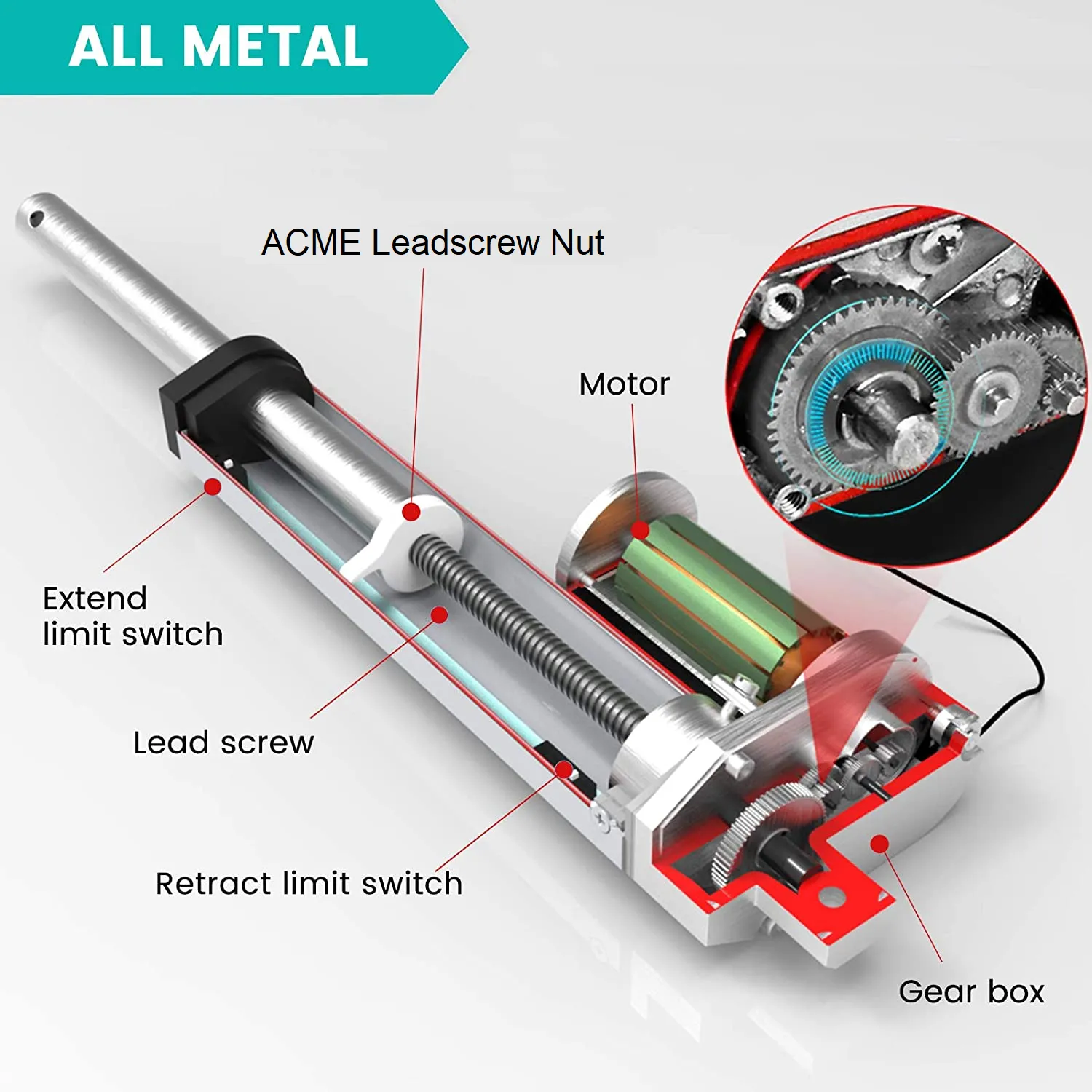

- Zinc alloy housing provides an excellent combination of strength, ductility, and impact strength.
- Save time and money with less repair downtime and maintenance hassle.

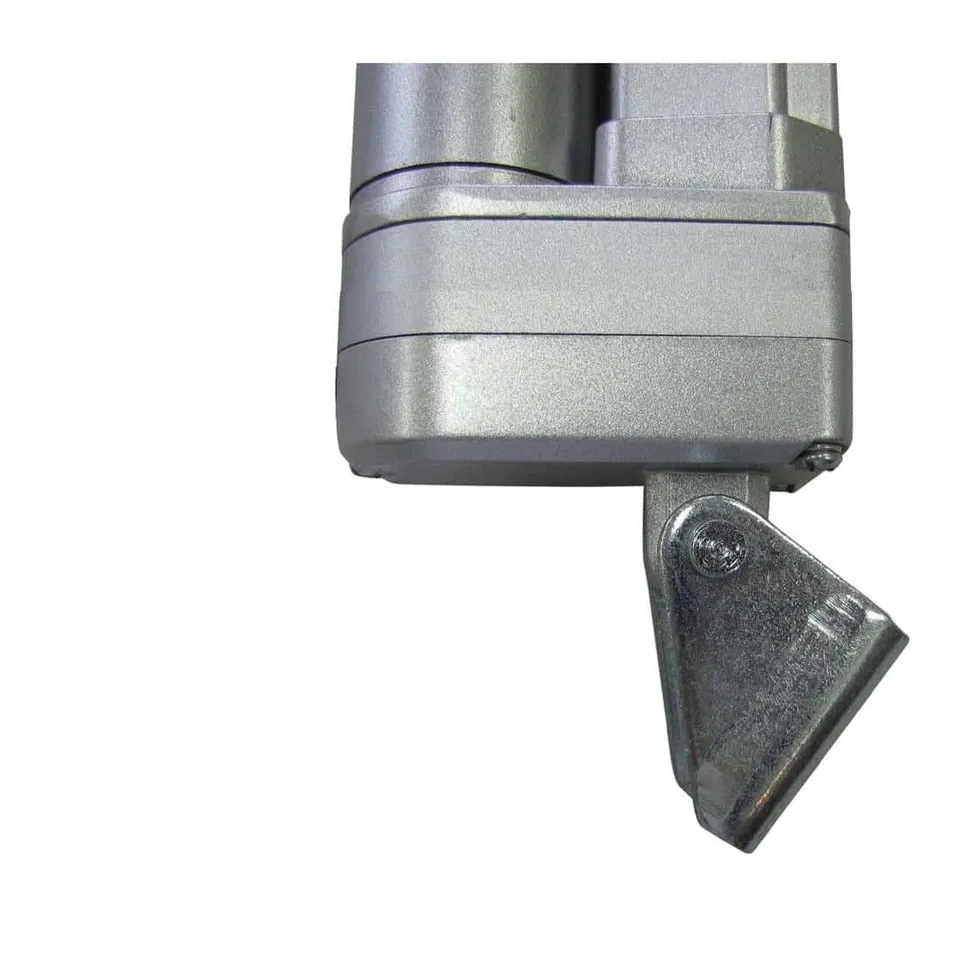

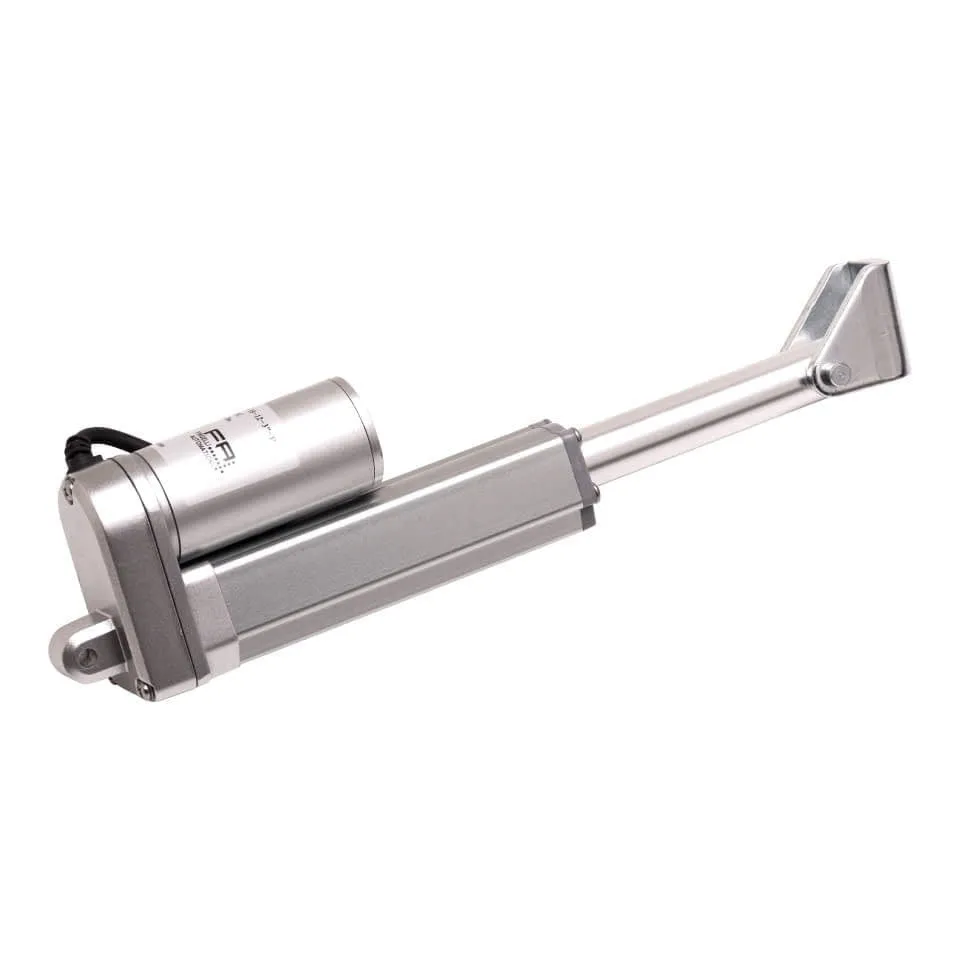

- Bracket options: and/or and with and
There are three force options available (35, 150, and 200 lbs); all three force options of the P-Series Actuators are capable of 500lbs static force. These units come equipped with built-in limit switches, are manufactured with high-grade aluminum outer and inner tubes, and come in various stroke lengths, these Premium Linear Actuators are the beginning of most home and product automation enterprises.
All of our units are CE and ROHS certified, and come with a 12-month mechanical warranty to keep your units serving you best. Our company values revolve around providing quick and friendly customer service that will follow your experience with our products and staff.
Specifications
| Model | FA-35-12-(X)-P | FA-150-12-(X)-P | FA-240-12-(X)-P |
| Dynamic Force | 35 lbs. | 150 lbs. | 200 lbs. |
| Static Force | 200 lbs. | 500 lbs. | 500 lbs. |
| Speed ("/S) | 2.0" | .30" | .24" |
| Gear Ratio | 5:1 | 20:1 | 30:1 |
| Duty Cycle | 25% at 100% load, 50% at 25% of load , absolute max. 5 mins continuous use | ||
| IP Rating | IP61 | ||
| Screw Type | ACME | ||
| Sound Rating | 20 dB over Ambient | ||
| Input | 12v DC | ||
| Max Draw | 5 A | ||
| Feedback | None | ||
| Synchronous Capability | None, 5-10% variation in speed | ||
| Clevis End | 0.24" diameter fits bracket | ||
| Operational Temperature | -6°C/65°C (-21°F/150°) | ||
| Limit Switch | Built in, non-adjustable. For an adjustable limit switch actuator, check out our "" | ||
| Certifications | CE | ||
| Wire Length | 2.5 feet | ||
| Wire Size | 18AWG | ||
| Bracket(s) | and/or and with and | ||

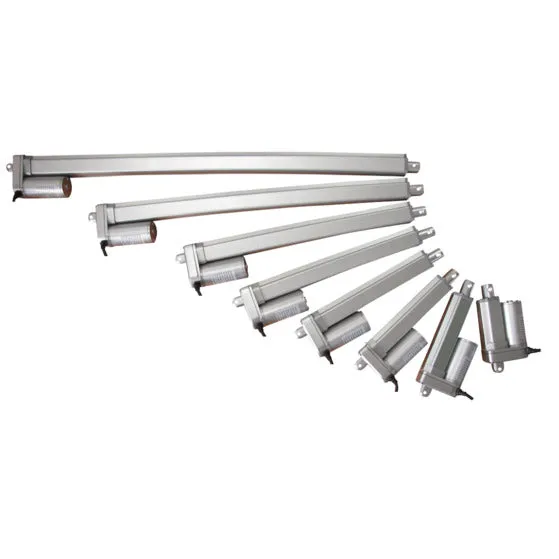

| Stroke | Retracted Length (End to End) | Extended Length (End to End) | Weight (lbs) | STEP Files (35)(150)(200) | |
| 1" | 5.53" | 6.53" | 1.60 | ||
| 2" | 6.53" | 8.53" | 1.68 | ||
| 3" | 7.53" | 10.53" | 1.84 | ||
| 4" | 8.53" | 12.53" | 1.92 | ||
| 6" | 10.53" | 16.53" | 2.12 | ||
| 9" | 13.53" | 22.53" | 2.48 | ||
| 12" | 16.53" | 28.53" | 2.78 | ||
| 18" | 22.53" | 40.53" | 3.40 | ||
| 24" | 28.53" | 52.53" | 4.02 | ||
| 30" | 34.53" | 64.53" | 4.68 | FA-35(150)(200)-12-30-P.step |
Speed & Load Curves
Technical Drawings
Product Video
P-Series Linear Actuator Review
Comparison Video
P-Series vs Classic Linear Actuator

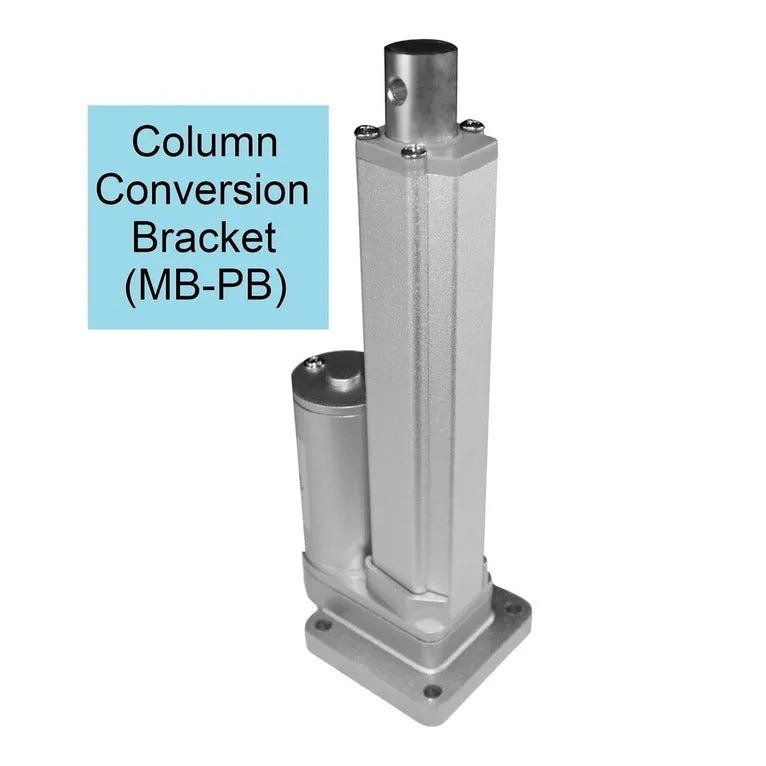

Column Conversion Bracket Video
Operating Video
Wiring Diagram
Click here to view our wiring diagram generator to help you set up your actuator system
Downloads
3D Model Downloads (.STEP)
Same files apply to all Force models
