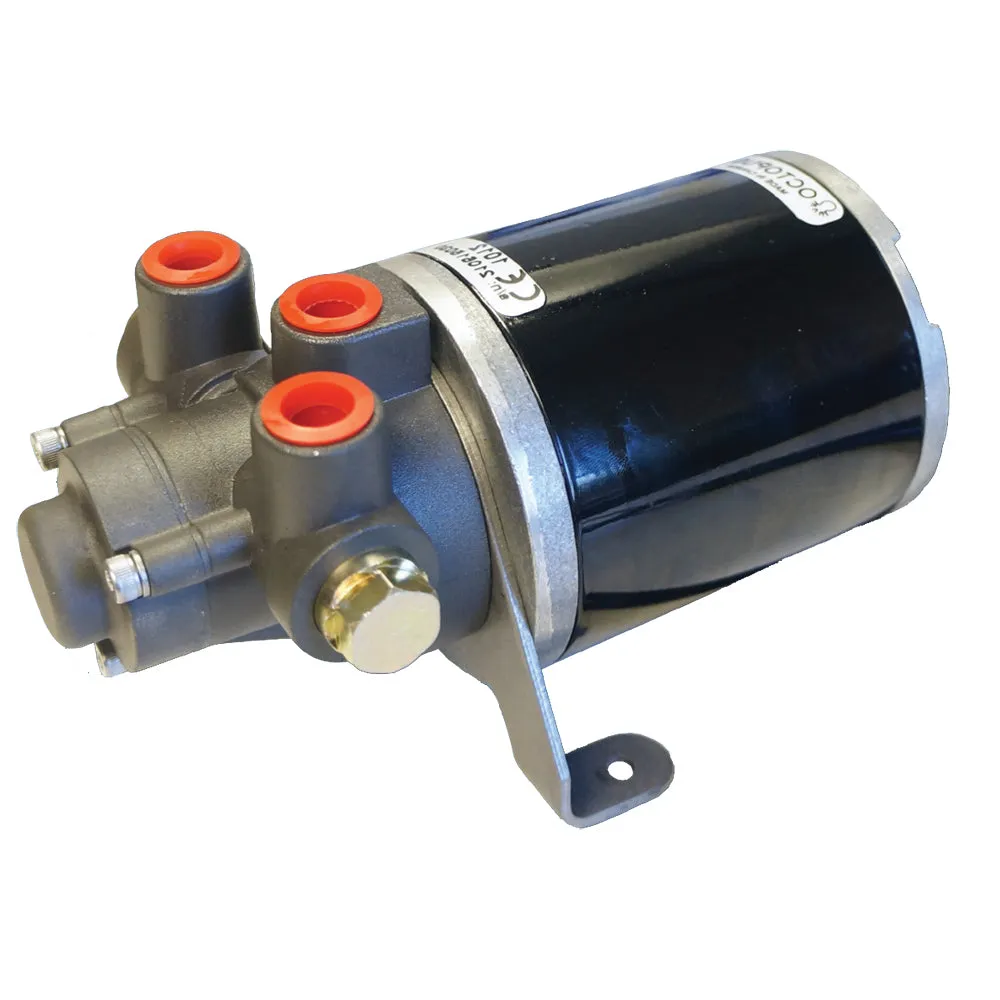

Hydraulic Gear Pump 12V 6-9CI Cylinder

From the design team that brought you the legendary Octopus hydraulic drives, our new gear pump offers industry leading reliability and performance in a smaller, lighter, quieter package.

Features:

• Industry leading efficiency - lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units.




• Cost saving - the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units.




• The smaller footprint of the compact gear pump increases installation flexibility.




• Lower noise and vibration make the gear pump particularly suitable for sailboat installations.




• Suitable for balanced or unbalanced cylinders.




• All models available for both 12v and 24v systems.

• Flow Rate: 600CC/min




• Voltage: 12 Volt




• Cylinder Range: 6-9ci CYLINDER




• Average Current Draw: 3.8A




• Operating Temperature: -15 to 75'C (5 - 167'F)




• Waterproofing: IP55




• Ignition Protection: ISO 8846 & SAEJ1171




• EMC Compliance: EN60945-9-2002
