Features:

• Max 80W total output power
• Max 100V or max 2A per output
• Max 200V in serial or max 4A in parallel mode
• Voltage ripple and noise < 1.5 mV (RMS), < 20 mV (peak-to-peak) (meas.)
• Current ripple and noise < 500 µA (RMS) (meas.)
• Rise time < 100 ms
• Fall time full load: < 10 ms, no load: < 50 ms
• Programming resolution 1 mV / 1 mA
• Readback resolution 1 mV / 100 MicroA

Accessories Supplied:

• Set of power cables
• Terminal blocks
• Quick start guide

Includes:

• NGA-K103 Digital Trigger I/O

Independent channels (R&S NGA102 and R&S NGA142):
The two channels have completely separate circuitry and are not connected to the chassis ground, making it easy to combine channels for bipolar circuitries that might need 12 V/–12 V. Both channels are electrically equivalent, with the same voltage, current and power. The two channels act as separate power supplies and can be operated individually or simultaneously.

NGA100 Series Highlights:
The R&S NGA100 power supplies sereis are linear, compact and easy to use. All models have excellent readback accuracy with a low current range for demanding measurements.

Features such as data logging, arbitrary waveforms, built in statistics and remote sensing make the instruments ideal for various bench applications. Equipped with a number of different remote interfaces, including USB and Ethernet, the R&S NGA100 power supplies are also great for automated tests. Advanced protective functions keep devices connected and power supplies safe.

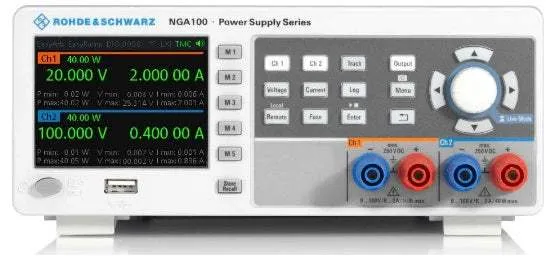

*The image is a representation of selection. See specifications for product details.
