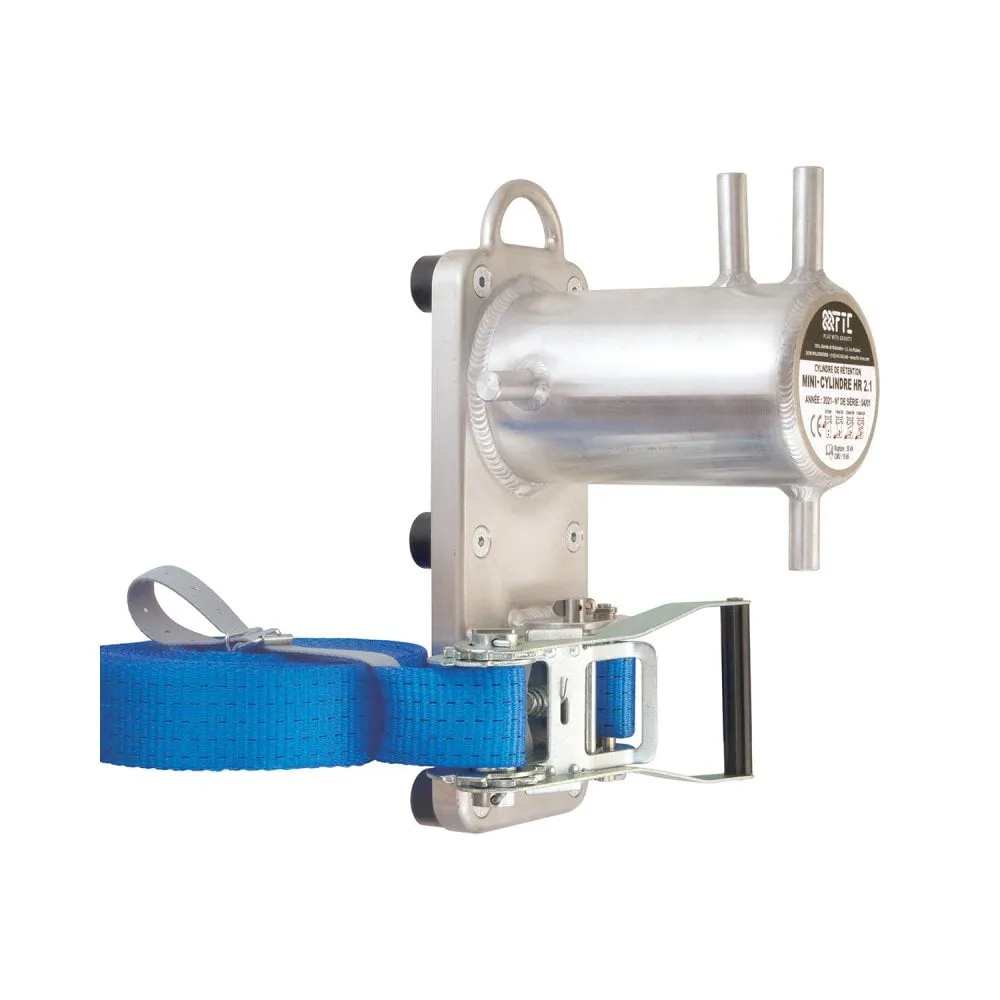

The FTC Mini-cylindre HR 2.1 is a high-quality friction device designed for tree care work. It is made entirely of aluminium, so it won't heat up and won't burn your ropes. The round upper ring enables reeving, and two fairleads at the end of the cylinder prevent losing wraps and overlapping of the rope. A third fairlead under the cylinder enables a finer, more precise rigging. 6 rubber silent blocks protect the tree and ensure stability of the cylinder when loaded. The symmetry of the device allows left or right location of the ground crew.

Features:

• Made of aluminum for heat dissipation and protection of ropes
• Round upper ring for easy reeving
• Two fairleads at the end of the cylinder for preventing rope loss and overlapping
• Third fairlead under the cylinder for finer, more precise rigging
• 6 rubber silent blocks to protect the tree and ensure stability
• Symmetrical design for left or right location of the ground crew

Technical Specification

• Machinery Directive - 2006/42/CE
• Weight - 3.6 kg (6.61 lb) (7.2 kg (15.8 lb) with strap and transport box)
• Distortion - 50 kN - WLL: 10 kN
• Plate - 340 mm high (13.4 in - half ring included), 120 mm wide (4.7 in), 20 mm thick (0.2 in)
• Cylinder - Ø100 mm (3.9 in).
• Strap length - 9 m (29.5 ft - for trees up to 2 m in diameter - 6.6 ft)
• Box - 30 cm x 40 cm - 23.5 cm high (11.8 in x 15.7 in - 9.3 in high)
• Maximum Ø of rope allowed - 16 mm

Benefits:

• Improved safety and control during tree care work
• Reduced wear and tear on ropes
• Increased efficiency and productivity
• Durable and long-lasting construction

Order your FTC Mini-cylindre HR 2.1 friction device today and experience the difference!
