Product Details
＋
Description

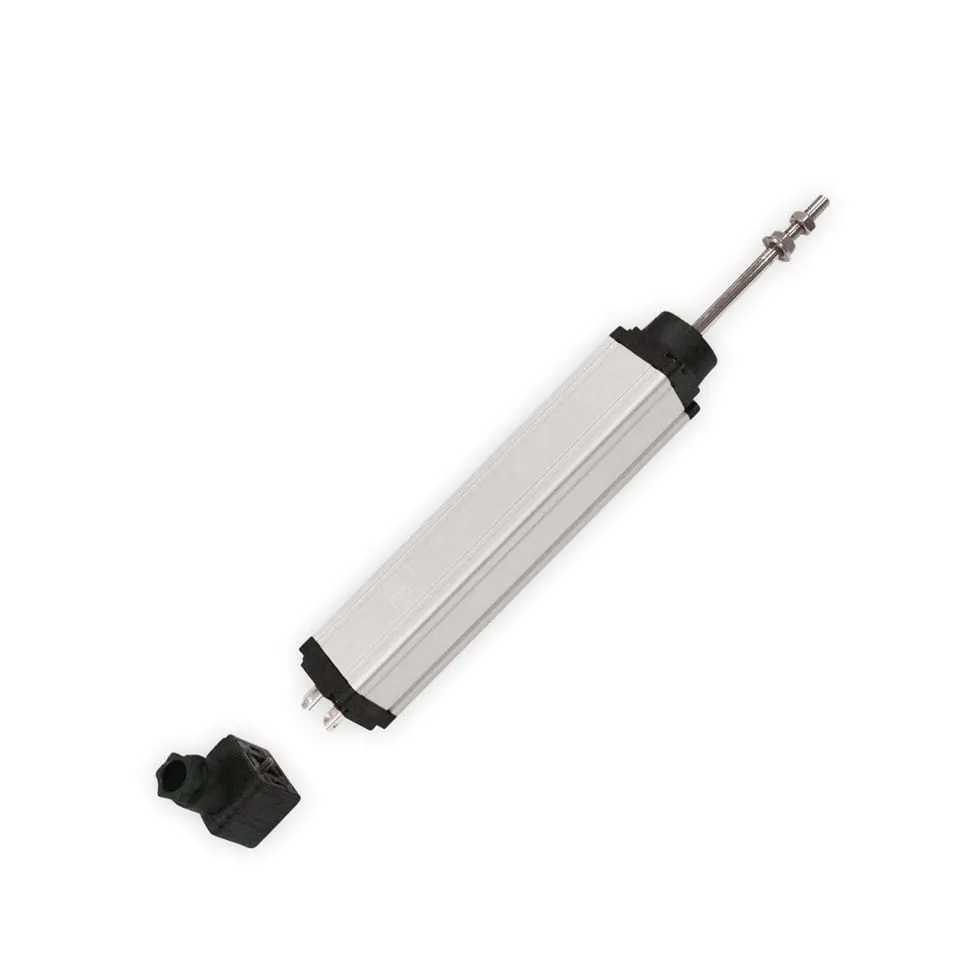

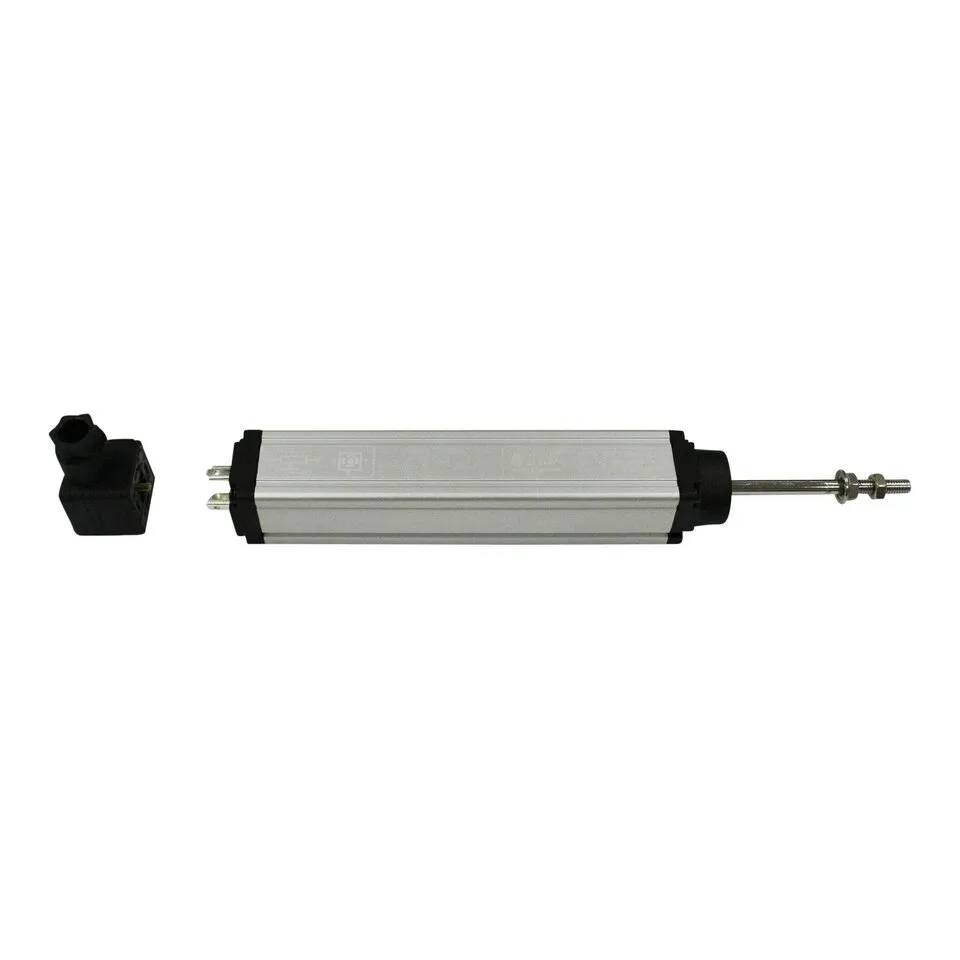

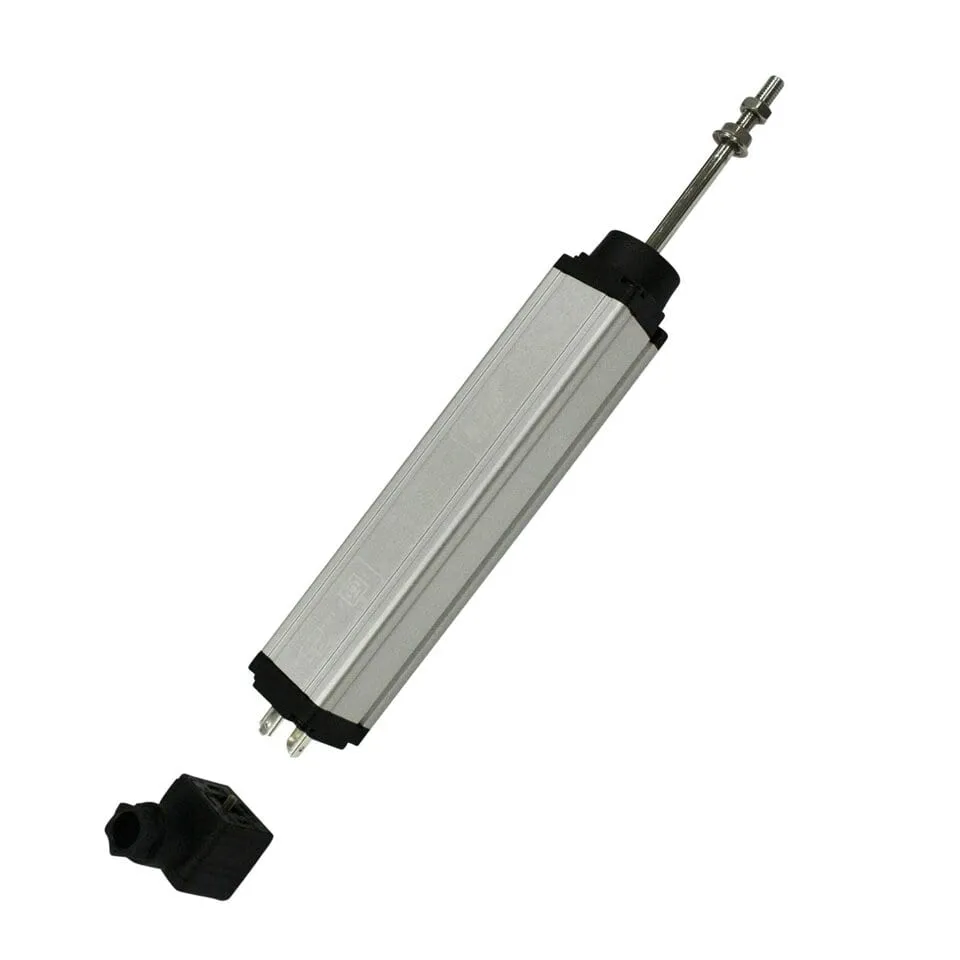

Linear Potentiometers are used for positional control or just Feedback of your Actuator or devices. These compact units have amazing accuracy and linearity with strokes of up to 50" long. These are useful for applications where you need feedback of some type and cannot use our standard Actuators with the built in Potentiometers. These Linear Potentiometers do not need to be used to their full stroke, just a portion will do. The feedback is provided by a voltage divider, making for simple integration into any control system.
Features and Benefits
- Rugged Construction and Shaft Seals for Protection in Factory Environments
- High Performance Bearings for Long Life in Extreme Side Load Conditions
- Precious Metal Wipers Insure High Performance and Low Noise
- Plastic Film Element Reduces Wear for Extremely Long Life
Specifications
- Linearity: /-0.05% 0.1%
- Length: equals stroke 89mm
- Resistance range: 10K
- IP54
- Stainless steel sliding Potentiometer Rod shaft

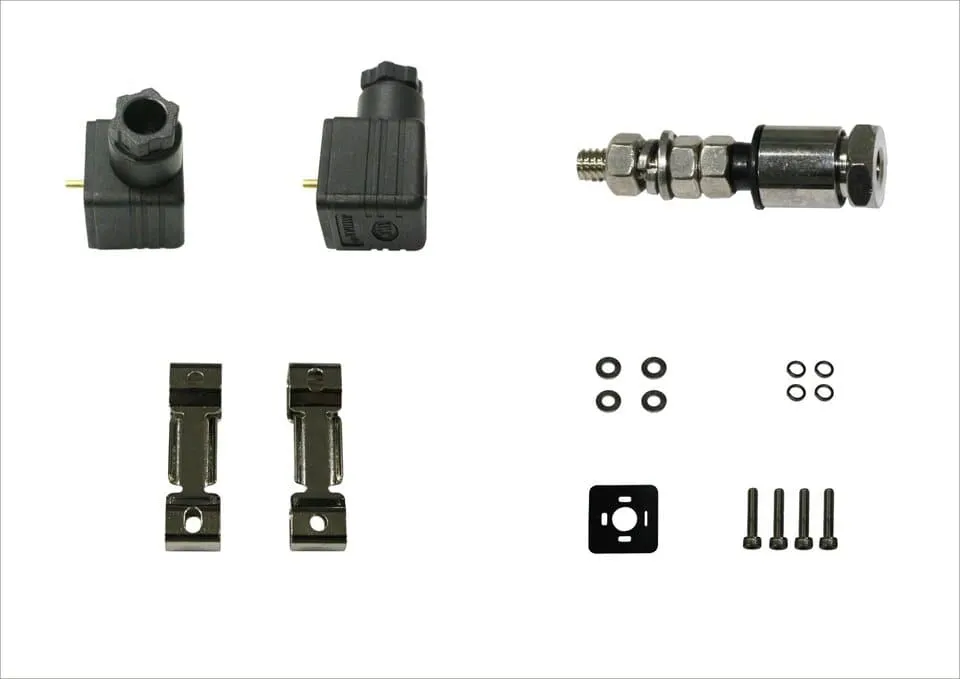

- Black plastic cap to cover electrical connections
- Double brushes to reduce electrical noise
- Aluminum Body
- Resolution: infinate
- Repeatability Precision: 0.01mm
- Max Speed: 10m/s
- Reccomended Current: <1mA
- Temp range: -60 150 Degs C

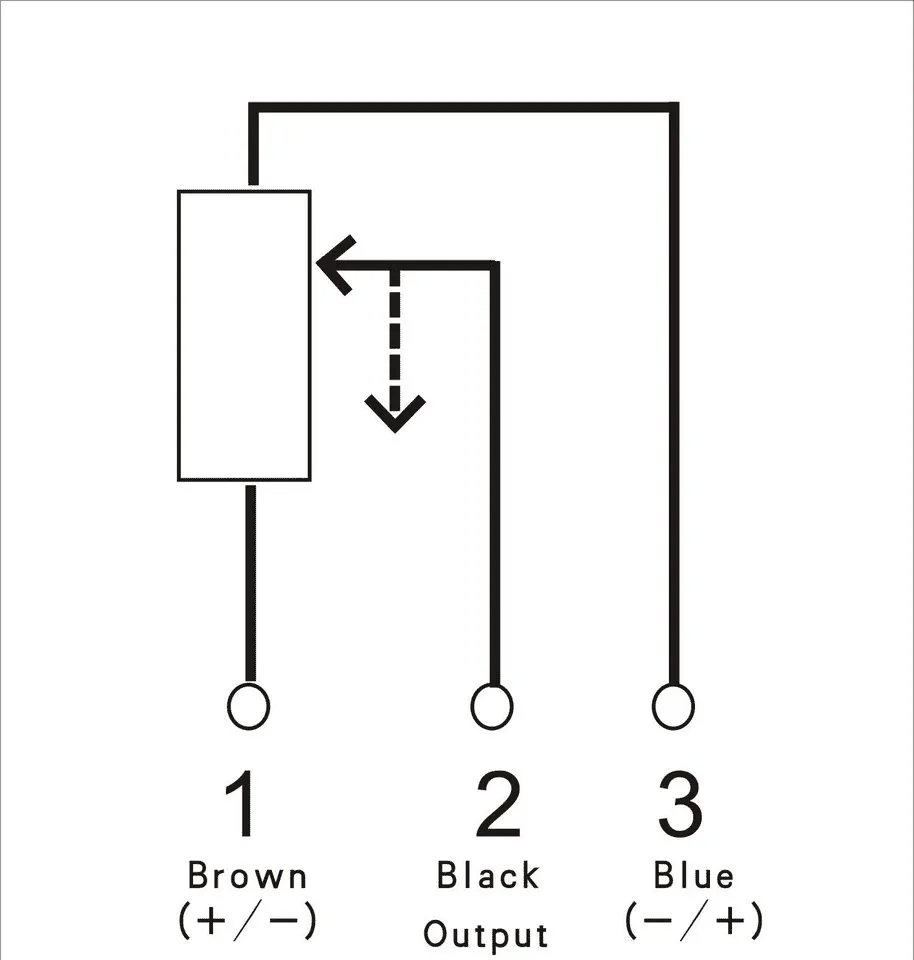

- Output: 0~100% x input voltage (change with the movement of the rod)
- Sensitivity: 1
- Temperature drift: none

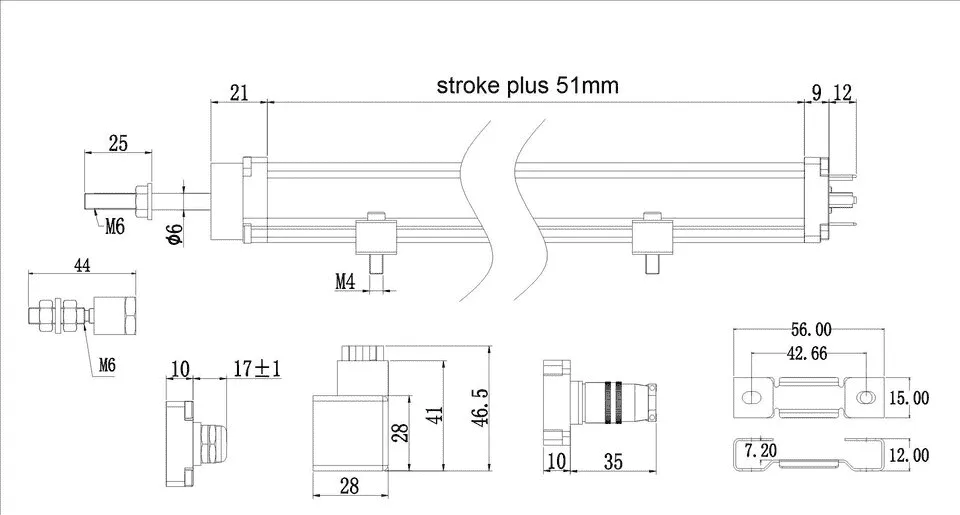

Technical Drawings
×
