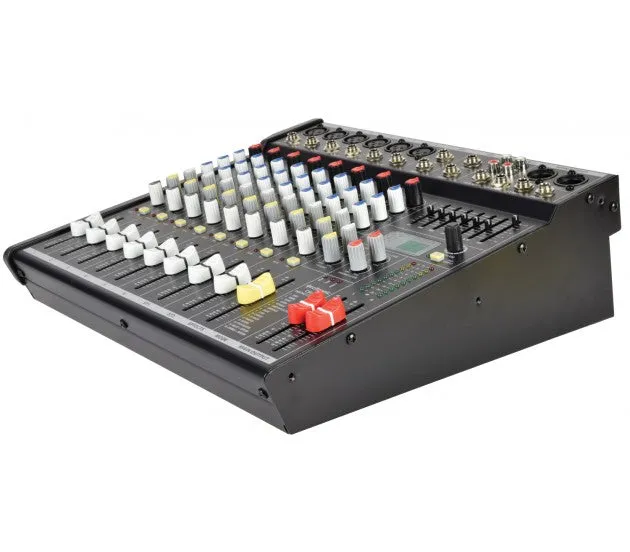

Kompaktiškas mikšeris su subalansuotais mikrofono / linijos įėjimais  CSL-10 modelis  skirtas renginiams ir naudojimui scenoje.

• 24-bit 16 programų su DSP efektais.
• Dažnių juosta: 20Hz-30kHz (0.5dB).
• 3-band EQ kanalui.
• Mikrofono jautrumas:  -60 to 14dBu.
• Jautrumas: -40 to 14dBu.
• 48V maitinimas skirtas XLR įėjimams.

APRAŠYMAS

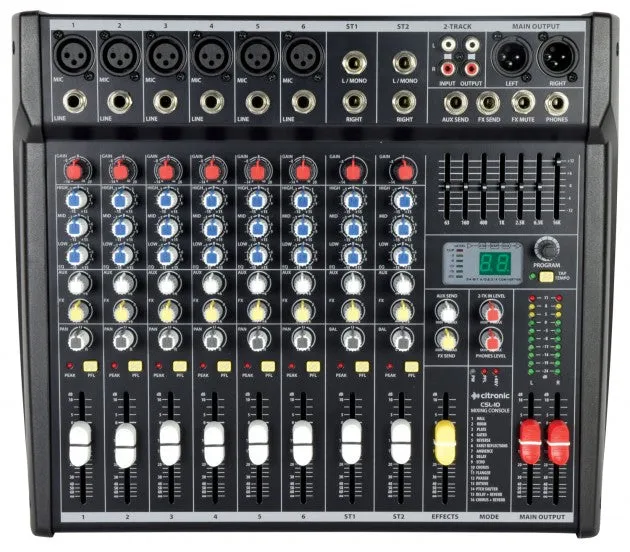

Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.

• 24-bit 16 program DSP effects
• 48V phantom power for XLR inputs
• 3-band EQ per channel
• 7-band global graphic EQ
• IEC mains powered
• Balanced main outputs

TECHNINIAI DUOMENYS

SPECIFIAKCIJOS

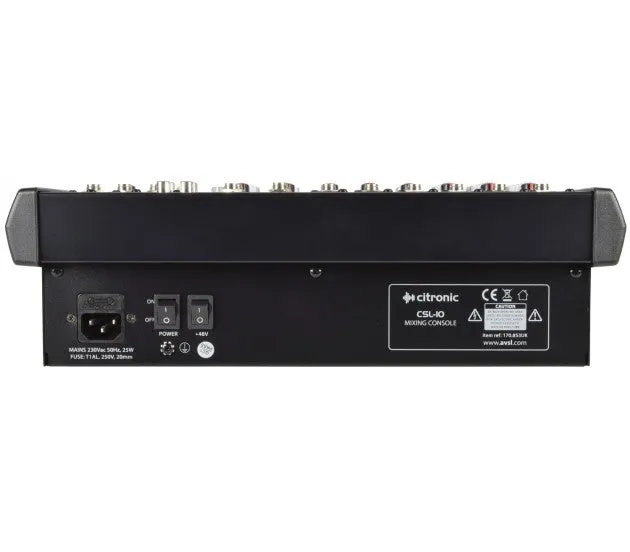

• Power supply:  230Vac, 50Hz (IEC)
• Phantom power:  48V (XLR inputs)
• Power consumption:  25W
• Fuse:  T1AL
• Input level:  24dBu
• Output level : line:  26dBu
• Frequency response:  20Hz-30kHz (0.5dB)
• CMRR:  >74dB (mic 1kHz)
• THD N:  <0.01% (channel to main out)
• Crosstalk:  >85dB (fader mute), >82dB (channel)
• Noise rms : 22Hz-22kHz:  -122dBu (EIN), -82dBu (mix)
• EQ: high:  12kHz ±15dB shelving
• EQ: mid:  2.5kHz ±15dB band pass
• EQ: low:  80Hz ±15dB shelving
• Input impedance : mic (balanced):  2k Ohms
• Input impedance : line (balanced):  10k Ohms
• Sensitivity : mic:  -60 to 14dBu
• Sensitivity : line:  -40 to 14dBu
• 2-track:  2 x RCA in & out (-2dBu)
• Effects:  16 program DSP (24-bit sigma-delta, 40kHz)
• Output impedance:  <75 Ohms
• Headphone output:  6.3mm jack, 30-600 Ohms
• Inputs : mic/line:  6 x balanced XLRF/TRS jack
• Dimensions:  360 x 320 x 107mm
• Weight:  3.5kg

KAS PAKUOTĖJE?

• CSL-series mixing console
• IEC power lead(s)
