Ashly TM-335 overview

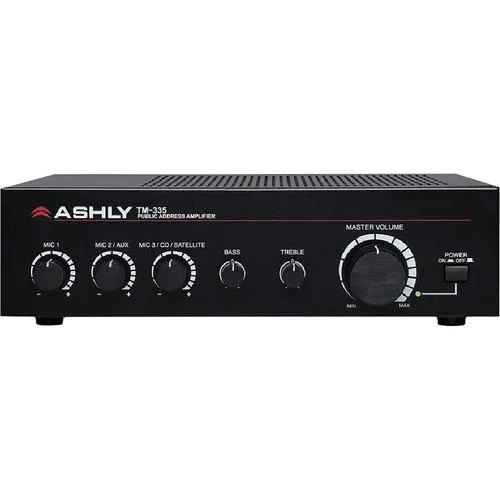

The Ashley TM-335 Public Address Mixer/Amplifier is a mono mixer/amplifier that's compact, outputs 35 watts of power and aimed squarely at audio for background music, paging, commercial offices, retail and more. The amplifier supports 4 ohm, 8 ohm, 25 volt and 70 volt operation, with taps on Euroblock connectors. There are mic and line inputs, provisions for audio ducking in priority audio situations, telephone input and more. The straightforward front panel features a level control, bass and treble controls and a level control dial for each of the 3 input channels.

35W mono speaker output with 4W, 8W, 25V, and 70V taps on Euroblock 230V export models have 4W, 8W, 70V, and 100V output taps

Euroblock telephone input with rear panel level and ducking depth controls

Euroblock mic input with rear panel ducking depth control

Selectable Euroblock mic input or summed stereo aux input on Euroblock or 3.5mm jack

Selectable Euroblock mic input or summed stereo CD/Satellite input on RCA jack

Front panel level and master volume controls

Front panel bass and treble controls

Limited five year warranty

Safety/Compliance: cCSAus, CE, FCC, RoHS

Ashly TM-335 specs

Power Output	35W (RMS) (@ THD 5%)
Frequency Response	Mic 1, 2, 3: 130Hz to 20kHz Aux: 50Hz to 20kHz CD/Satellite: 50Hz to 20kHz Telephone: 330Hz to 3kHz
THD	Less that 5% (at rated output, 1kHz)
Signal-to-Noise Ratio	89dB (26dB gain)
Input Sensitivity	Mic 1, 2, 3: -50dBV/600 ohms Aux: -15dBV/10k ohms CD/Satellite: -15dBV/10k ohms Telephone: 0.3V/600 ohms
Output Voltage	EC & Associated (230V): 4 ohms/11.8V, 8 ohms/16.7V, 140 ohms/70V, 285 ohms/100V USA/Canada & Associated: 4 ohms/11.8V, 8 ohms/16.7V, 18 ohms/25V, 140 ohms/70V
Temperature	-10 to 40°C
Power Supply	100-120VAC or 220-240VAC; 50/60Hz (supplied AC mains transformer depends on country requirements)
Current Draw	Idle: 0.11A 1/8 power pink noise: 0.27A 1/3 power sine wave: 0.31A (120VAC, 60Hz)
Online Thermal Dissipation	Idle: 30 1/8 power pink noise: 68 1/3 power sine wave: 75
Dimensions (WxHxD)	11.4 x 3 x 7.3" (290 x 76 x 185mm)
Weight	9.7lb (4.4kg)
